Tipo de rolamento: Two Ball Bearings
Material: Impeller &Frame: Fios de chumbo Plastic (UL94V-0)
Lead Wires: UL1007MENS35;AWG26
nbsp; .Red Wire Positive (+)
nbsp; .Fio preto negativo (negativo)一)
Peso: 145.0g

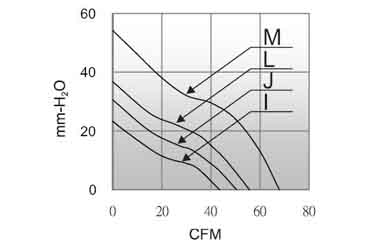

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA06038_12I | B | 12 | 7.0~13.2 | 0.52 | 8000 | 43.1 | 22.9 | 51 |
| WSA06038_24I | B | 24 | 14.0~26.4 | 0.22 | 8000 | 43.1 | 22.9 | 51 |
| WSA06038_48I | B | 48 | 28.0~56.0 | 0.2 | 8000 | 50 | 30 | 53.5 |
| WSA06038_12J | B | 12 | 7.0~13.2 | 0.68 | 9000 | 50 | 30 | 53.5 |
| WSA06038_24J | B | 24 | 14.0~26.4 | 0.4 | 9000 | 50 | 30 | 53.5 |
| WSA06038_12L | B | 12 | 7.0~13.2 | 0.9 | 10000 | 55.2 | 35.8 | 57 |
| WSA06038_24L | B | 24 | 14.0~26.4 | 0.53 | 10000 | 55.2 | 35.8 | 57 |
| WSA06038_12M | B | 12 | 7.0~13.2 | 1.38 | 12000 | 67.3 | 52.6 | 61.8 |
| WSA06038_24M | B | 24 | 14.0~26.4 | 0.54 | 12000 | 67.3 | 52.6 | 61.8 |
