Tipo de rolamento: Two Ball Bearings
Material: Impeller &Frame: Fios de chumbo Plastic (UL94V-0)
Lead Wires: UL1007MENS35;AWG26
nbsp; .Red Wire Positive (+)
nbsp; .Fio preto negativo (negativo)一)
Peso: 96.0g

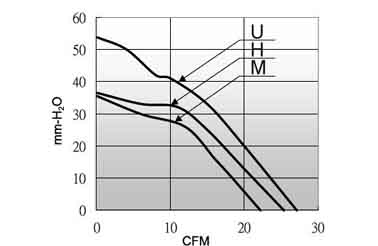

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA04056_12M | B | 12 | 7.0~13.2 | 0.85 | 11000 | 26 | 38.01 | 58 |
| WSA04056_12H | B | 12 | 7.0~13.2 | 1.25 | 13900 | 28.8 | 51.51 | 61.5 |
| WSA04056_12U | B | 12 | 7.0~13.2 | 1.5 | 15600 | 32.4 | 66.94 | 64.5 |
